| Model No | LSG 202 | LSG 252 | LSG 302 | LSG 352 |
| Description | “20″Double heads | “25″Double heads | “30″Double heads | “35″Double heads |
| Production output | 16-20pcs/min | 16-18pcs/min | 12-16pcs/min | 10-14pcs/min |
| Maximum Forming Size | Bowl<5 inch Plate<5.5 inch |
Bowl<6inch Plate <7 inch |
Bowl<7 inch Plate<8.5 inch |
Bowl<8inch Plate<10.5 inch |
PRODUCT PROCEDURE
DESCRIPTION
Full Auto Ceramic Tableware Jiggering Line Roller Forming Solution
Integrated Ceramic Tableware Roller Forming Solution – From Clay to Green Body with Absolute Stability.
Mastering Core Manufacturing Technology – Trusted by 95% of Local Ceramic Producers.
Product Overview

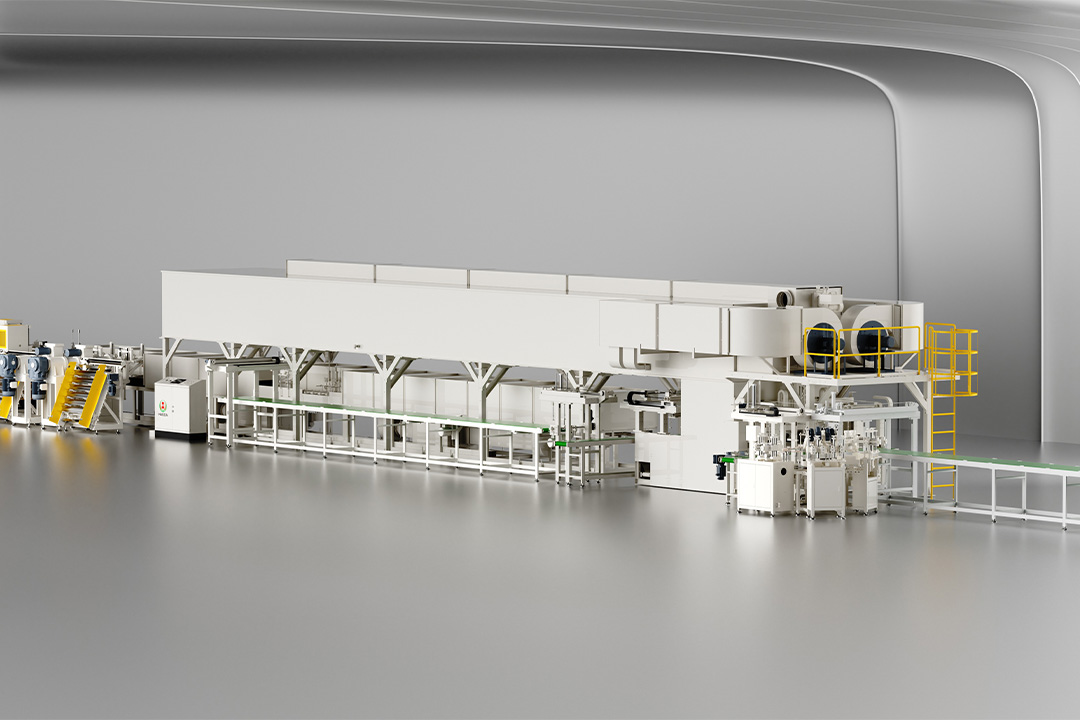

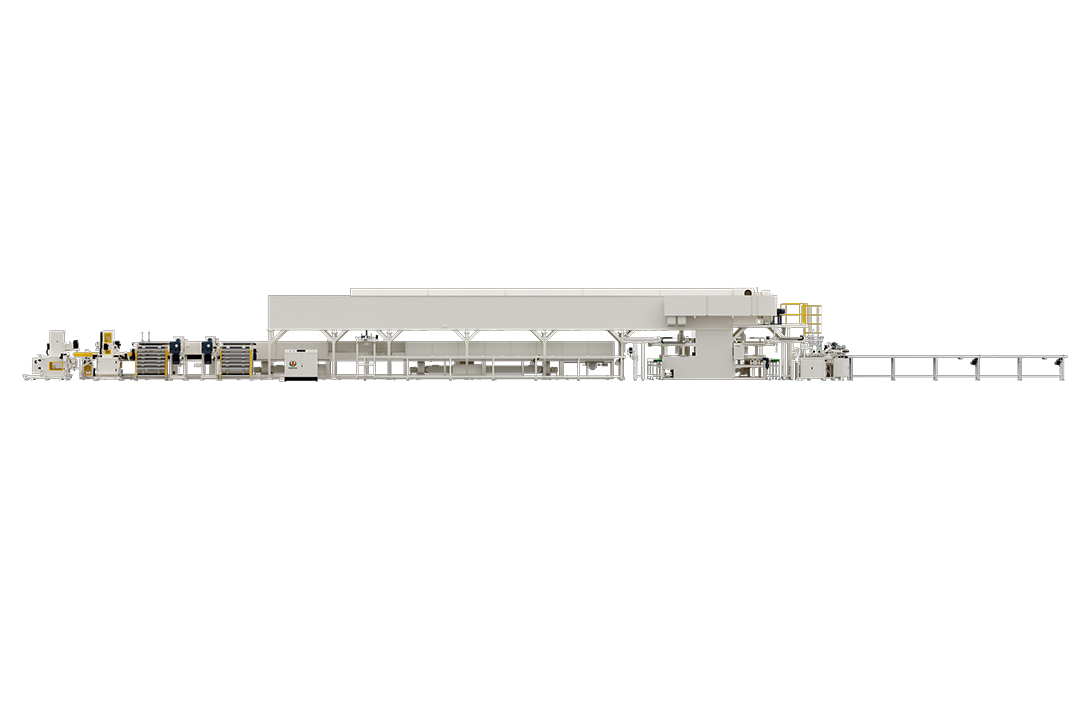

Our Translational Jiggering line serves as a comprehensive and integrated forming solution tailored for contemporary ceramic tableware manufacturing facilities. It incorporates six key systems: a vacuum pug mill, an automatic clay feeding system (for pretreating raw material), precision clay cutting, intelligent roller forming, a mold drying system, a rotating table automatic trimming system, and a Conveyor system. The line enables factories to achieve high production rates, high product quality, and a significant reduction in labor requirements.
Full Line Workflow
Vacuum Pug Mill Automatic Clay Feeding System） → Precision Clay Cutting → Roller Forming → Drying → Rotating Table Automatic Trimming → Auto Demoulding Robot & Conveying Collection

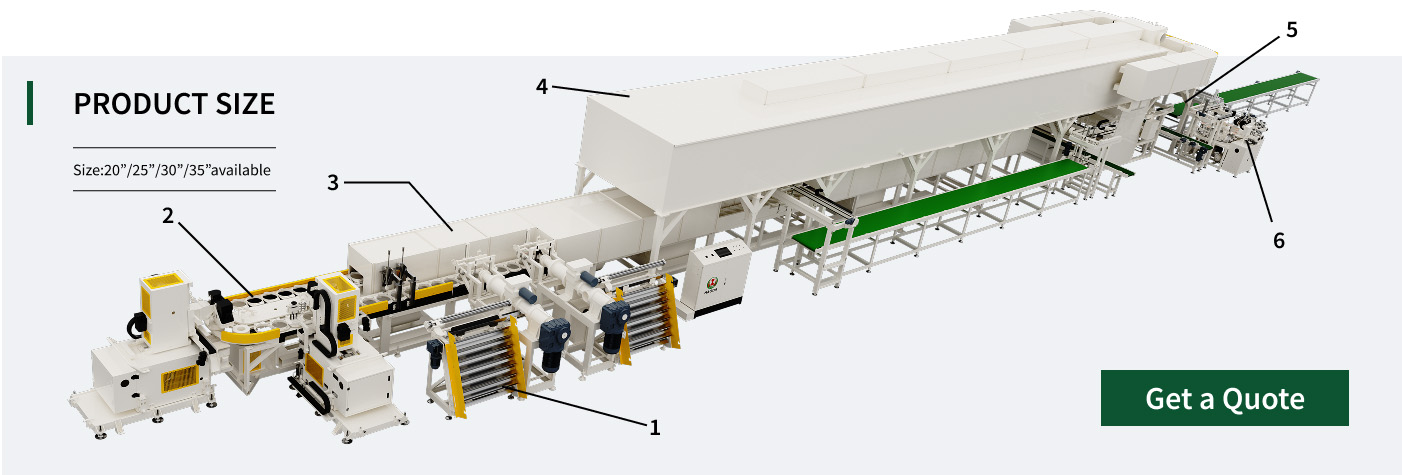

Six Core Systems

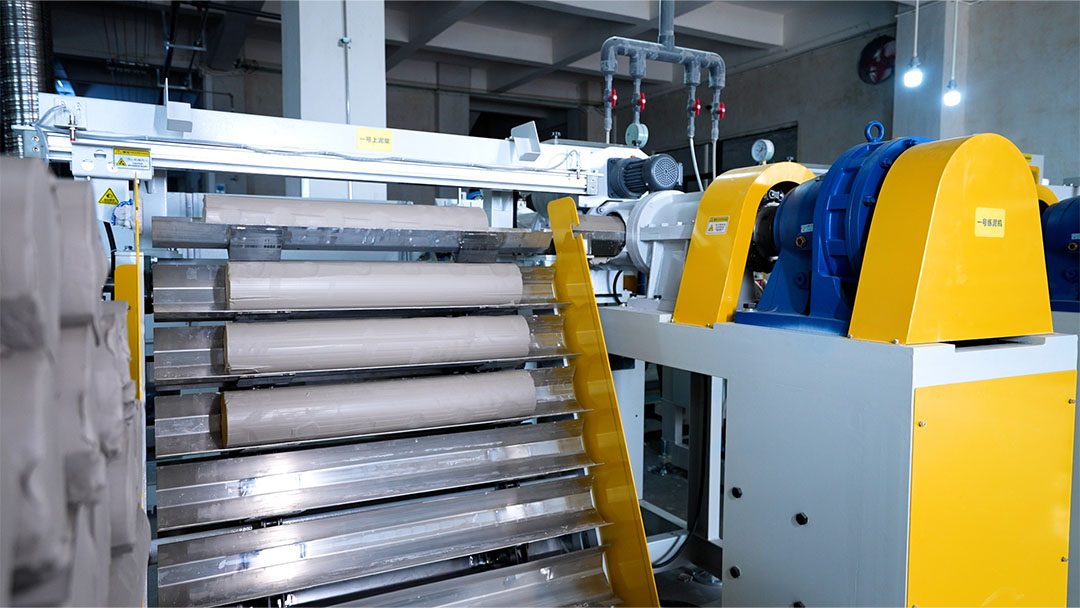

1.Vacuum Pug Mill Automatic Clay Supply System
2.Precision Cutting

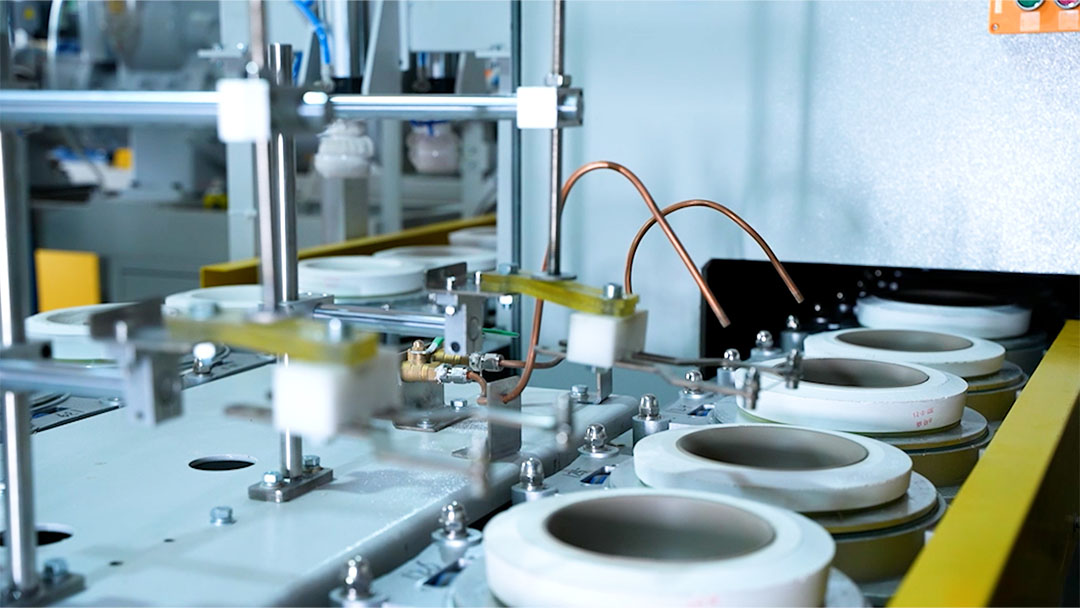

3.Roller Forming
(1) Servo-driven for fast, precise, repeatable forming
(2) Proven stability, core components machined in-house
(3) Adaptable to round-shaped products such as plates, bowls, and cups.
4.Belt Mold Drying System

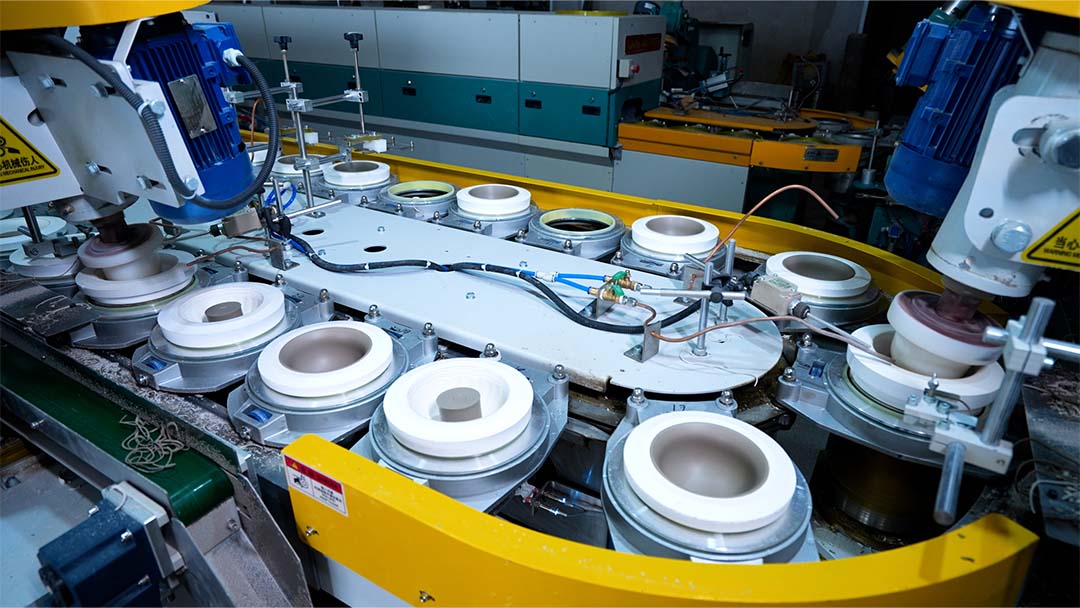

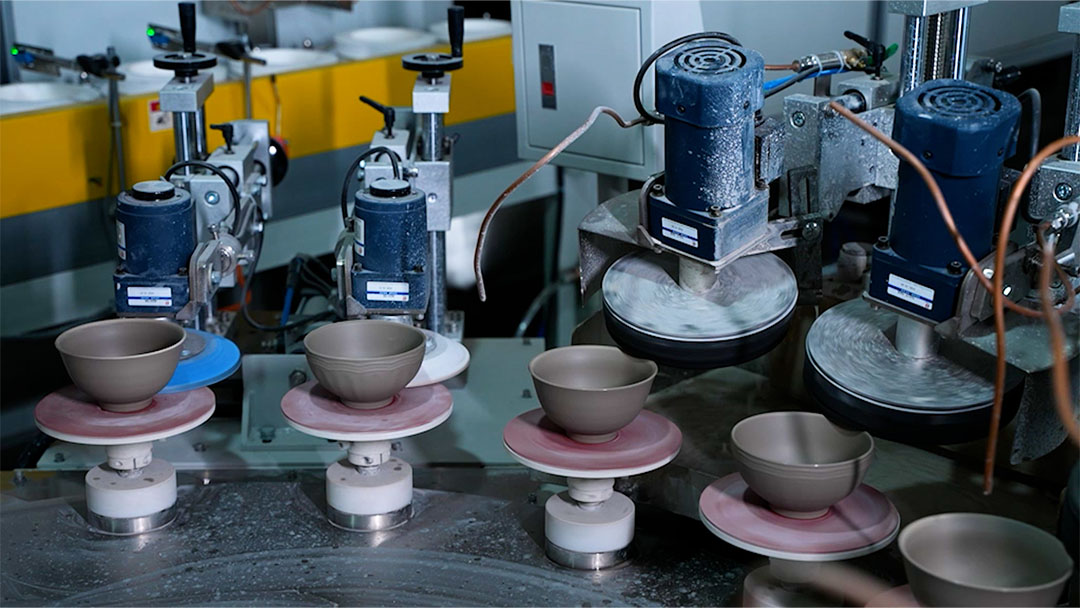

5.Rotating Table Automatic Trimming System

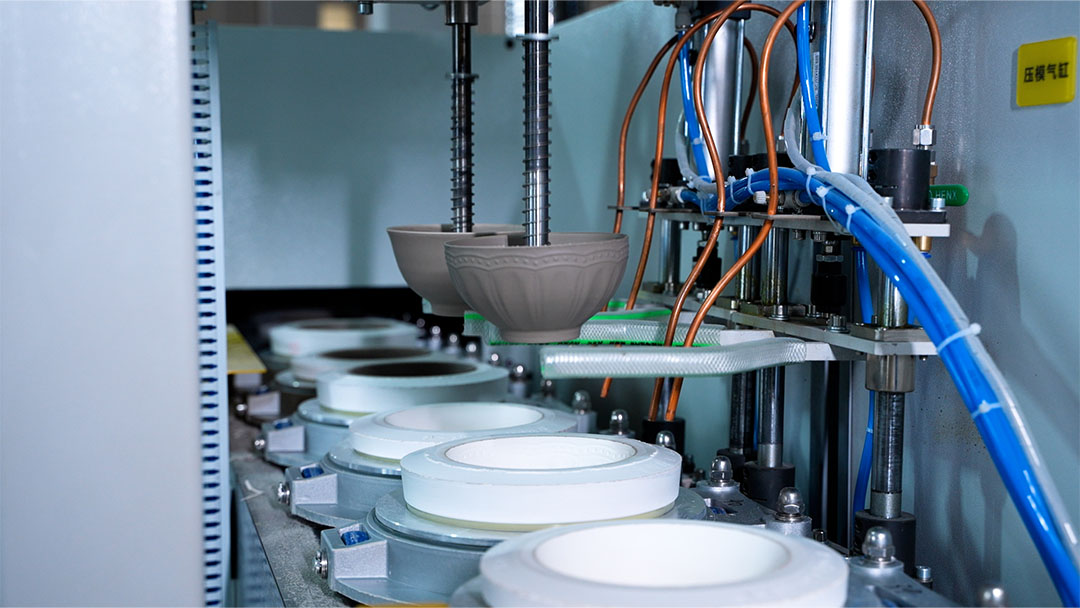

6.Auto Demoulding Robot & Conveyor System
Why Choose HAODA ?
1.In-house CNC Manufacturing: Core components machined internally. Ensures precision, reliability, fast response.
2.Independent Control System: Quick fault detection, fast maintenance, reduced downtime.
3.Proven Market Reliability: 95% local adoption, growing global customer base.
4.A complete end-to-end solution: Layout planning, installation, commissioning, training, and ongoing technical service.
Contact Us
Get tailored specifications and a customized production layout.Our engineers are ready to provide technical guidance and feasibility studies.
