| Model No | LSG 201 | LSG 251 | LSG 301 | LSG 351 | LSG 401 | LSG 501 |
| Description | “20″Single head | “25”Single head | ’30″Single head | “35”Single head | “40″Single head | “50″Single head |
| Production output | 8-10pcs/min | 8-10pcs/min | 8-10pcs/min | 6-8pcs/min | 4-6pcs/min | 3-5pcs/min |
| Maximum Forming Size | Dia<5.5 inch | Dia<7 inch | Dia<8.5 inch | Dia<10.5 inch | Dia<12inch | Dia<15 inch |
PRODUCT PROCEDURE
DESCRIPTION

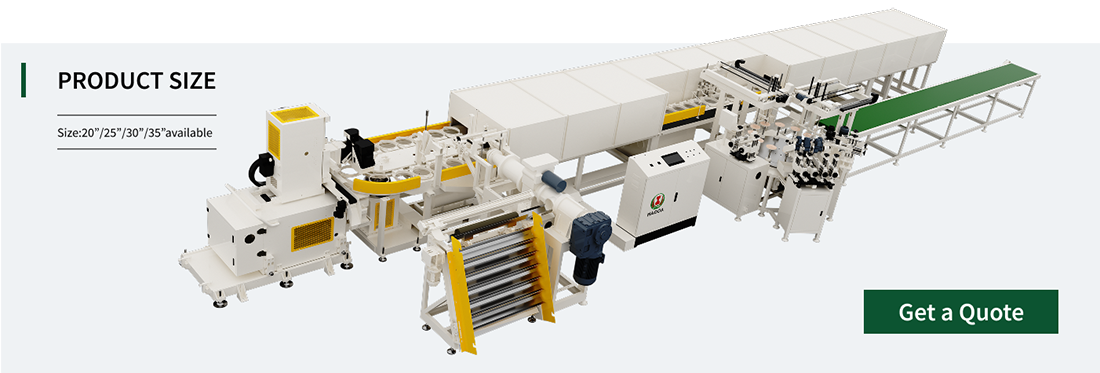

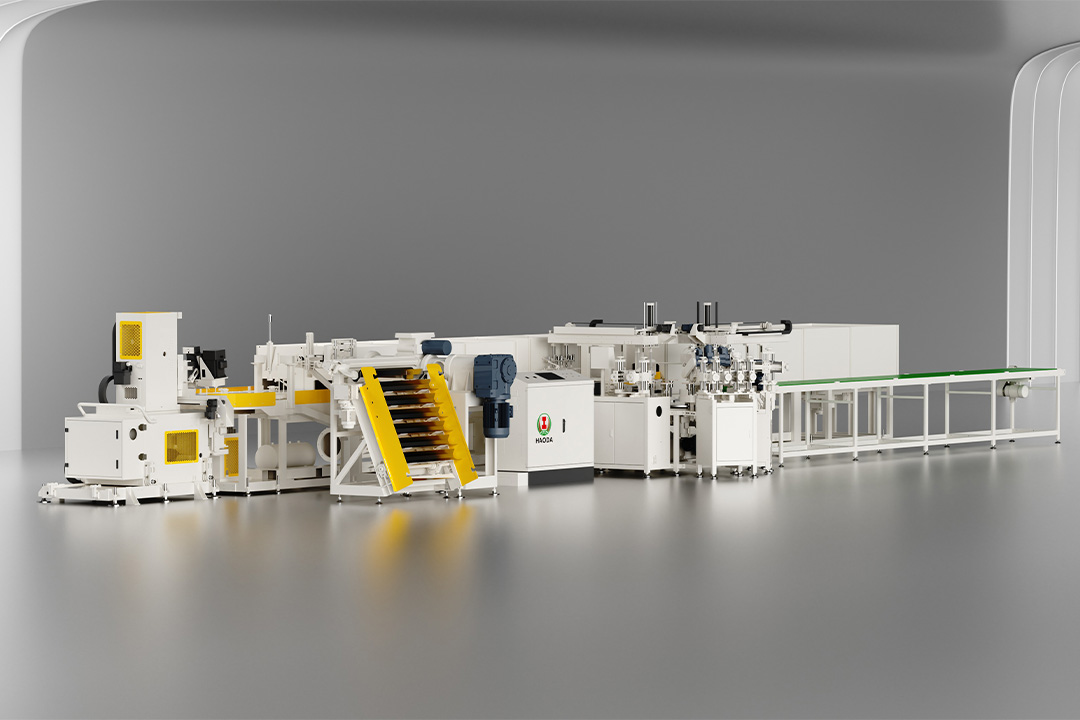

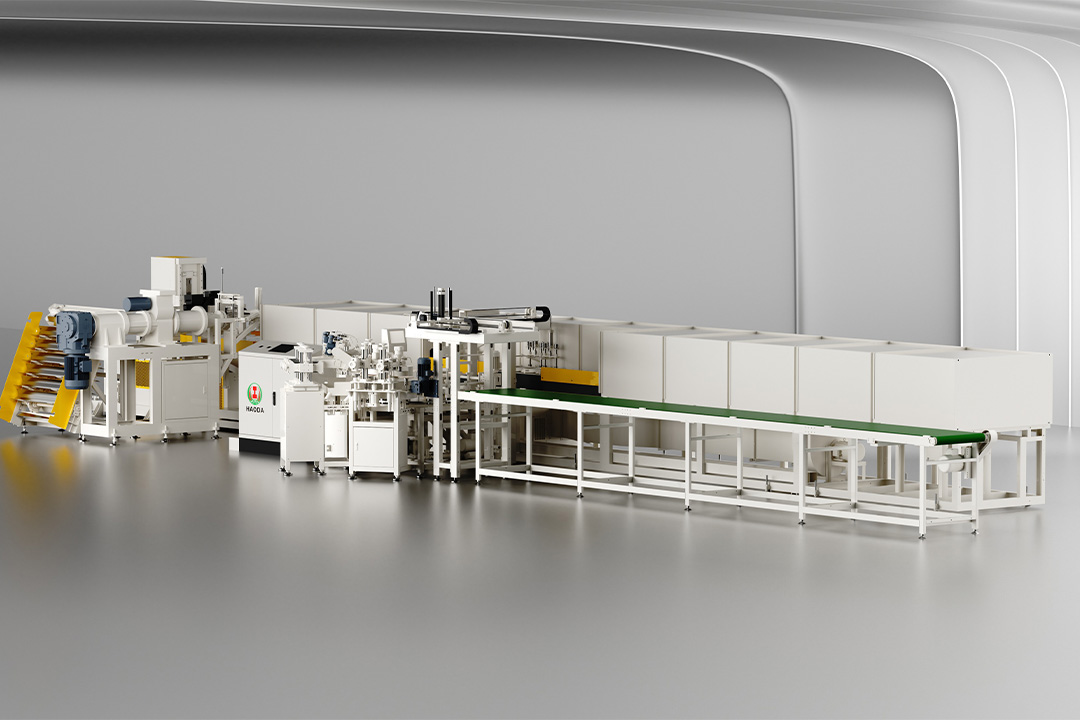

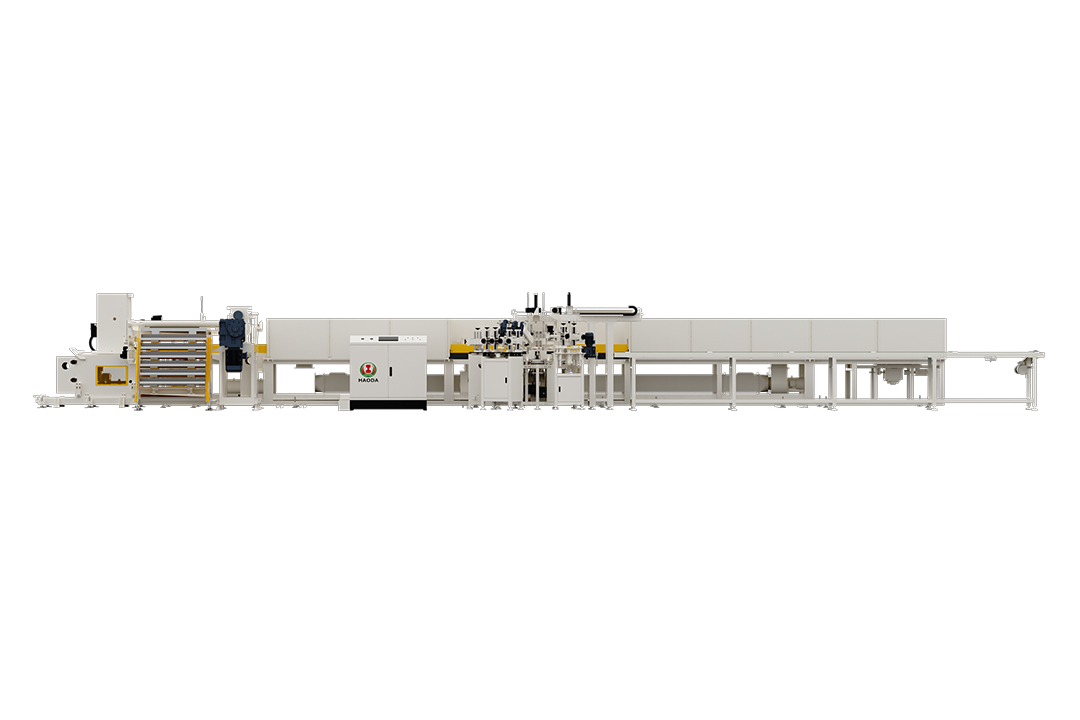

Full Auto Ceramic Tableware Jiggering Line Roller Forming Solution
Integrated Ceramic Tableware Roller Forming Solution – From Clay to Green Body with Absolute Stability.
Mastering Core Manufacturing Technology – Trusted by 95% of Local Ceramic Producers.
Product Overview
Our Translational Jiggering line serves as a comprehensive and integrated forming solution tailored for contemporary ceramic tableware manufacturing facilities. It incorporates six key systems: a vacuum pug mill, an automatic clay feeding system (for pretreating raw material), precision clay cutting, intelligent roller forming, a mold drying system, a rotating table automatic trimming system, and a Conveyor system. The line enables factories to achieve high production rates, high product quality, and a significant reduction in labor requirements.
Full Line Workflow
Vacuum Pug Mill Automatic Clay Feeding System） → Precision Clay Cutting → Roller Forming → Drying → Rotating Table Automatic Trimming → Auto Demoulding Robot & Conveying Collection
Six Core Systems
1.Vacuum Pug Mill Automatic Clay Supply System
2.Precision Cutting

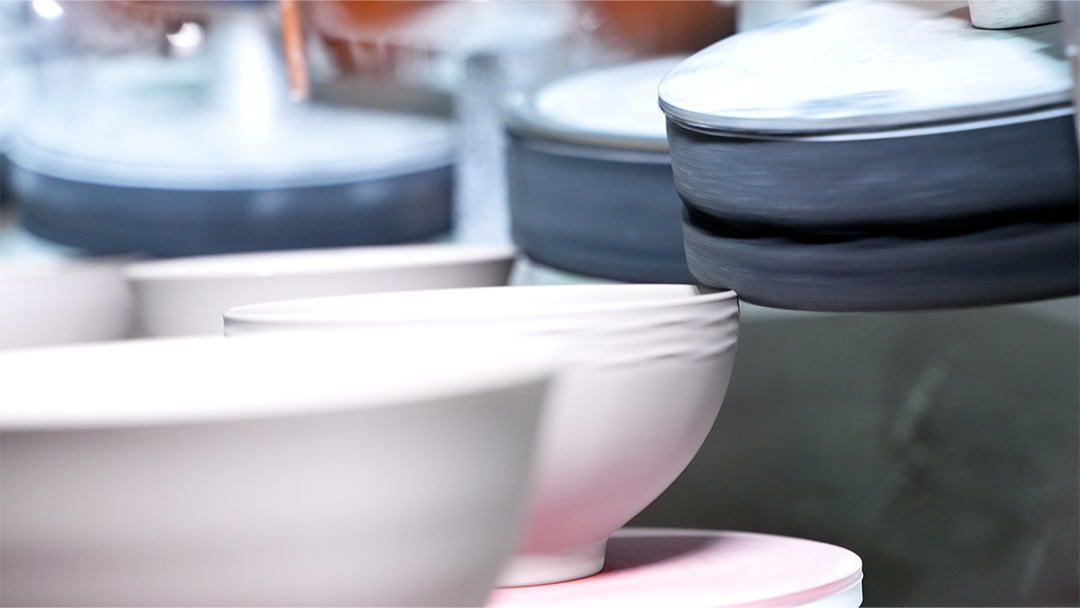

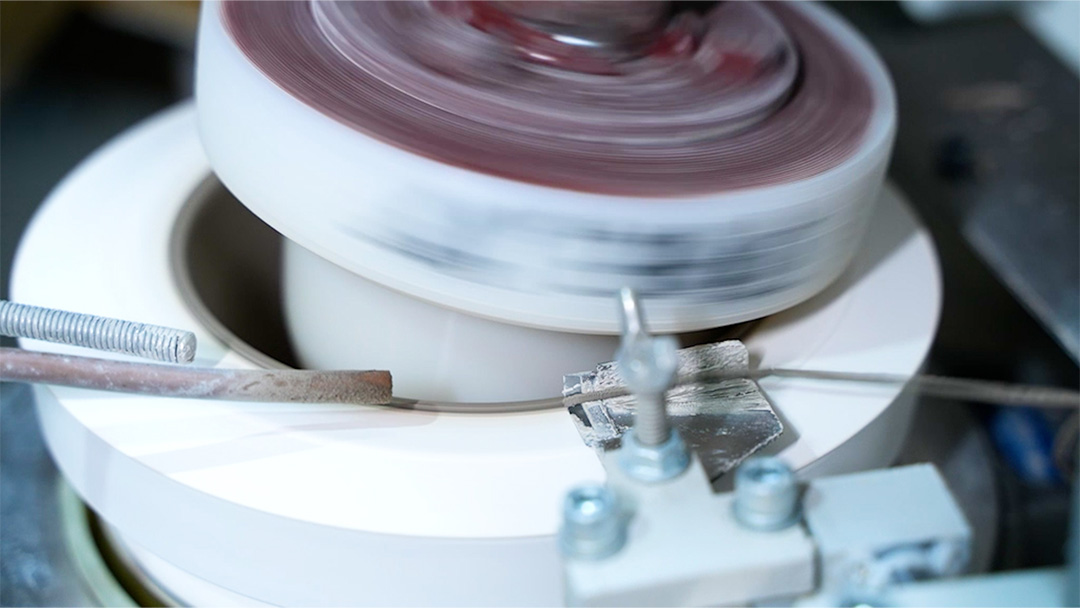

3.Roller Forming
(1) Servo-driven for fast, precise, repeatable forming
(2) Proven stability, core components machined in-house
(3) Adaptable to round-shaped products such as plates, bowls, and cups.
4.Belt Mold Drying System
5.Rotating Table Automatic Trimming System
6.Auto Demoulding Robot & Conveyor System
Why Choose HAODA ?
1.In-house CNC Manufacturing: Core components machined internally. Ensures precision, reliability, fast response.
2.Independent Control System: Quick fault detection, fast maintenance, reduced downtime.
3.Proven Market Reliability: 95% local adoption, growing global customer base.
4.A complete end-to-end solution: Layout planning, installation, commissioning, training, and ongoing technical service.
Contact Us
Get tailored specifications and a customized production layout.Our engineers are ready to provide technical guidance and feasibility studies.
